The SN65C23243DLR is a 10-bit bus transceiver from Texas Instruments, designed for operation at 250Kbps with a supply voltage of 5V. It is packaged in an SSOP-48 package and is suitable for surface mount applications. The device operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The transceiver has a supply current of 2mA and a weight of 0.021175oz.
PackageSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65C23243DLR technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 250Kbps |
| Lead Free | Lead Free |
| Logic Function | Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 6 |
| Number of Receivers | 10 |
| Number of Transceivers | 1 |
| Number of Transmitters | 6 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Weight | 0.021175oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65C23243DLR Datasheet
Download the complete datasheet for Texas Instruments SN65C23243DLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

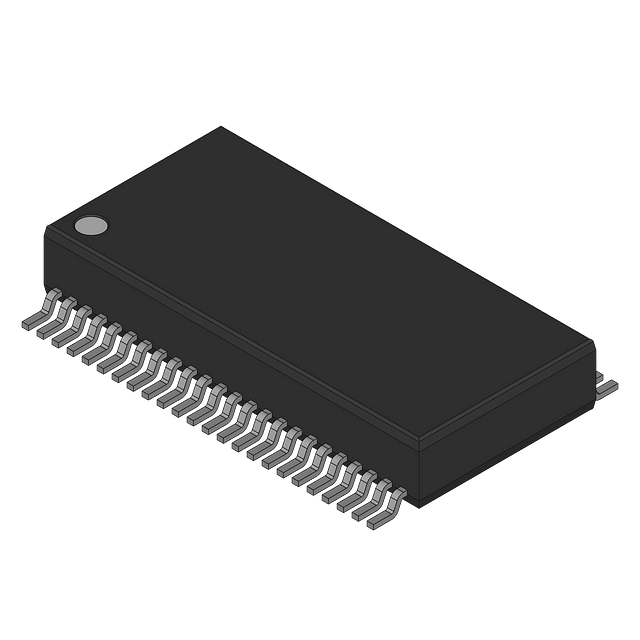

Product Images
