Full-duplex, multichannel RS-232 line driver/receiver with a 1Mbps data rate. This surface mount transceiver operates from a 3V to 5.5V supply voltage, with a typical operating supply voltage of 5V and a low operating supply current of 1mA. Features include one driver and one receiver, housed in a 16-SSOP package. Suitable for industrial applications with an operating temperature range of -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65C3221DBR technical specifications.
General
Package/Case
SSOP
Data Rate
1Mbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
1mA
Operating Supply Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.004536oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65C3221DBR Datasheet
Download the complete datasheet for Texas Instruments SN65C3221DBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

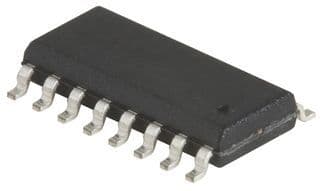

Product Images
