Single channel RS-232 transceiver, operating from 3V to 5.5V, supports a 1 Mbit/s data rate. Features full-duplex communication with one driver and one receiver. Packaged in a 16-pin SSOP for surface mounting, this lead-free component offers an operating temperature range of -40°C to 85°C. Output voltage reaches 13.2V with a typical supply current of 1mA.
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65C3221EDBR technical specifications.
General
Package/Case
SSOP
Data Rate
1000Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Voltage
5V
Output Voltage
13.2V
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
150ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.004536oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65C3221EDBR Datasheet
Download the complete datasheet for Texas Instruments SN65C3221EDBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

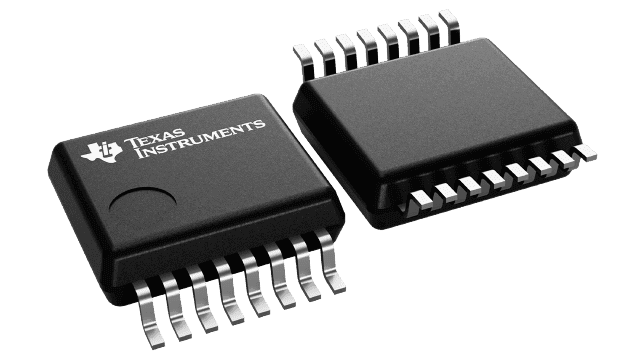

Product Images
