Texas Instruments
SN65C3232EDB
3- to 5.5-V dual channel 1Mbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-SSOP -40 to 85
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65C3232EDB technical specifications.
General
Package/Case
SSOP
Data Rate
1000Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
80
Packaging
Rail/Tube
Propagation Delay
0.3us
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.004536oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65C3232EDB Datasheet
Download the complete datasheet for Texas Instruments SN65C3232EDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

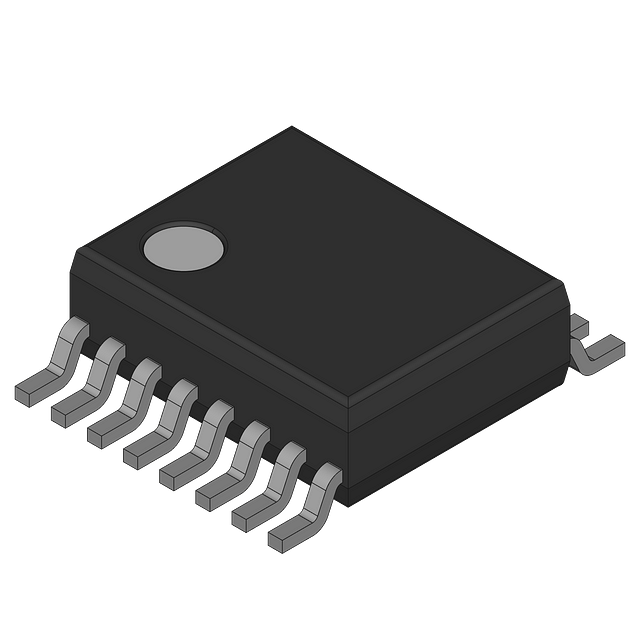

Product Images
