Texas Instruments
SN65C3243DWR
3-V To 5.5-V Multichannel RS-232 Line Driver/Receiver 28-SOIC -40 to 85
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65C3243DWR technical specifications.
General
Package/Case
SOIC
Data Rate
1000Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
3
Number of Receivers
5
Number of Transceivers
1
Number of Transmitters
3
Operating Supply Voltage
5V
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
150ns
RoHS Compliant
Yes
Supply Current
1mA
Weight
0.025778oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65C3243DWR Datasheet
Download the complete datasheet for Texas Instruments SN65C3243DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

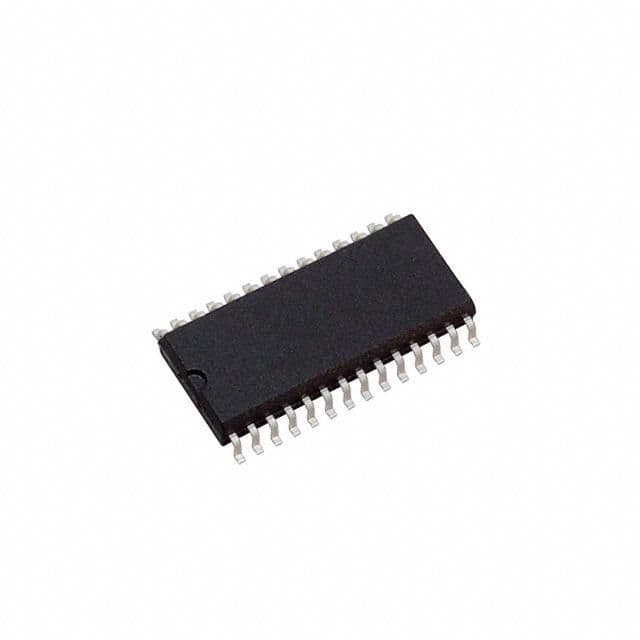

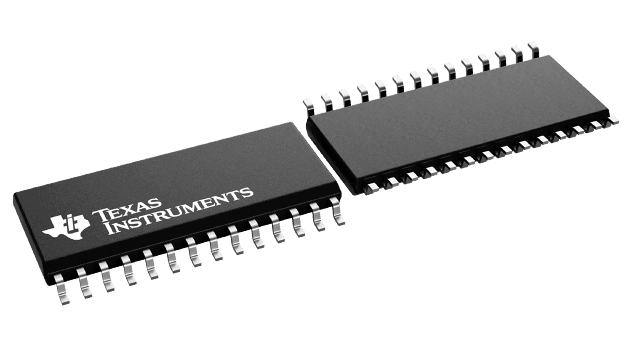

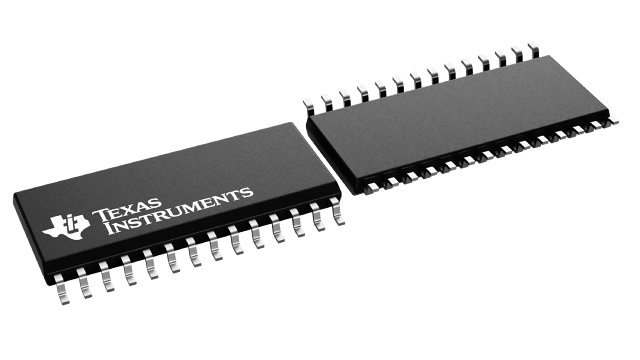

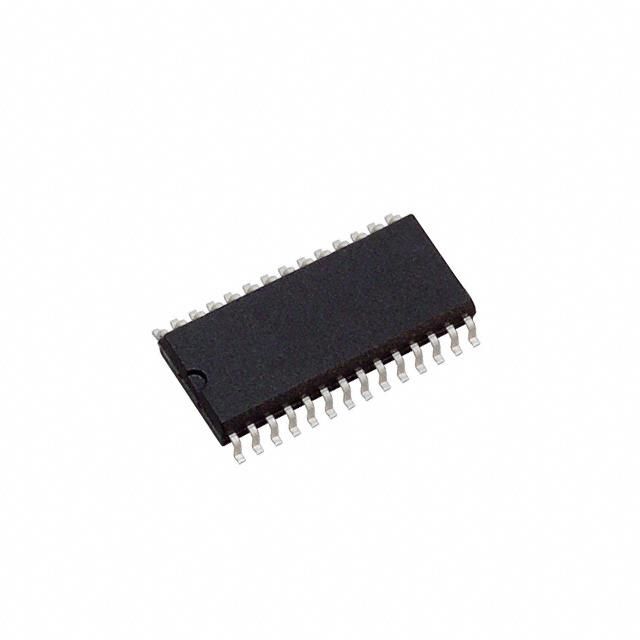

Product Images
