Industrial CAN Transceiver operating at 1Mbps data rate. Features ultra-low power standby mode with bus wake-up capability. Supports a single driver and single receiver with one transmit and one receive buffer. Wide operating temperature range from -40°C to 125°C, with an operating supply voltage of 5V (4.75V to 5.25V). Packaged in an 8-SOIC (D) case, this lead-free and RoHS compliant component is supplied in rail/tube packaging.
PackageD
Current70mA
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD1040D technical specifications.
General
| Package/Case | D |
| Data Rate | 1Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Drivers | 1 |
| Number of Receive Buffers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmit Buffers | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 70mA |
| Weight | 0.002677oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65HVD1040D Datasheet
Download the complete datasheet for Texas Instruments SN65HVD1040D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

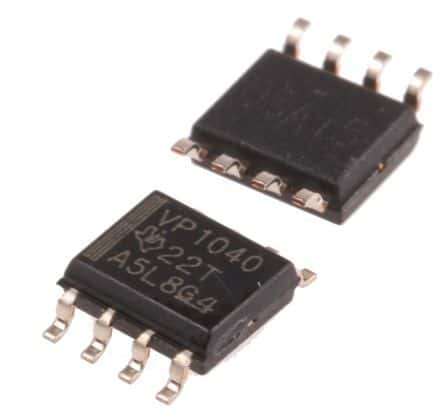

Product Images
