3.3V Half-duplex RS-485 transceiver, 32Mbps data rate, 8-SOIC package. Features ESD protection, surface mount capability, and operates from a 3V to 3.6V supply. This interface IC offers one driver and one receiver, with a maximum supply current of 15.5mA. Designed for a wide operating temperature range of -40°C to 125°C, it is RoHS compliant and lead-free.
PackageSOIC
Current15.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD10D technical specifications.
General
Package/Case
SOIC
Data Rate
32Mbps
ESD Protection
Yes
Height
1.58mm
Interface
RS-485
Lead Free
Lead Free
Length
4.9mm
Logic Function
Transceiver
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
15.5mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
15.5mA
Operating Supply Voltage
3.3V
Package Quantity
75
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
15.5mA
Weight
0.002561oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD10D Datasheet
Download the complete datasheet for Texas Instruments SN65HVD10D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

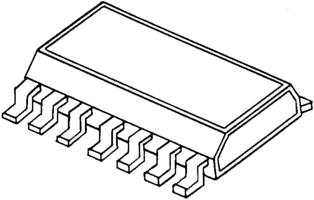

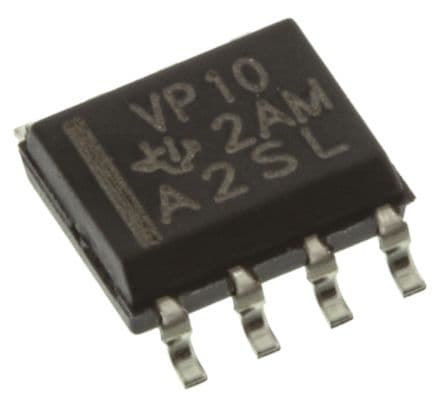

Product Images
