PackagePDIP
Current15.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD11P technical specifications.
General
Package/Case
PDIP
Data Rate
10Mbps
Lead Free
Lead Free
Logic Function
Transceiver
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Through Hole
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
15.5mA
Operating Supply Voltage
3.3V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
15.5mA
Weight
0.015535oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD11P Datasheet
Download the complete datasheet for Texas Instruments SN65HVD11P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

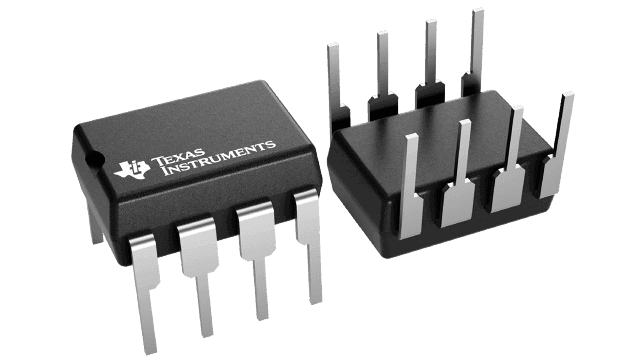

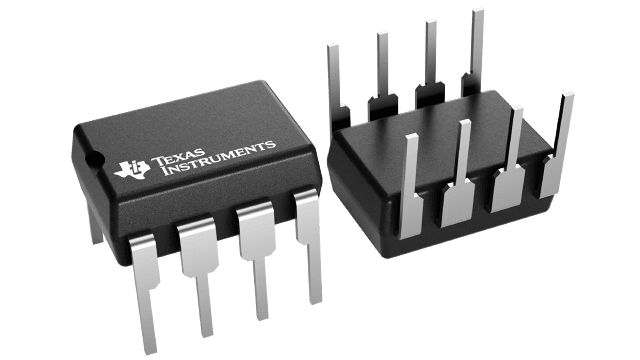

Product Images
