High-temperature 3.3-V RS-485 transceiver, operating from 3V to 3.6V with a nominal 3.3V supply. This half-duplex bus transceiver supports data rates up to 10Mbps and features a wide operating temperature range from -55°C to 175°C. It includes one driver and one receiver, with a typical operating supply current of 18mA and a propagation delay of 25ns. Packaged in an 8-CFP format, this RoHS compliant component is supplied in a rail/tube.
Current18mA
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD11SHKJ technical specifications.
General
Data Rate
10Mbps
Lead Free
Contains Lead
Logic Function
Transceiver
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
18mA
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Rail/Tube
Propagation Delay
25ns
Radiation Hardening
No
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
18mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD11SHKJ Datasheet
Download the complete datasheet for Texas Instruments SN65HVD11SHKJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

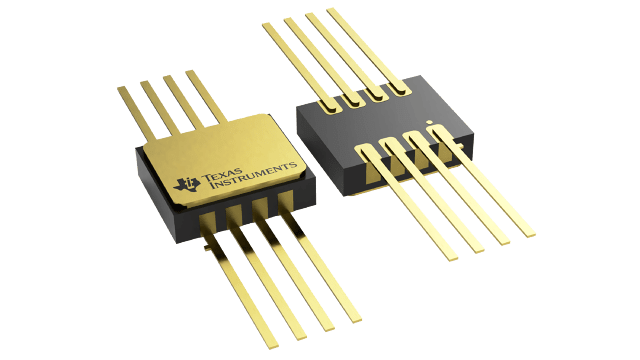

Product Images
