Texas Instruments
SN65HVD1476DGSR
3.3 V Full-Duplex RS-485, with IEC ESD, 50 Mbps, w/ Enables 10-VSSOP -40 to 125
PackageVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD1476DGSR technical specifications.
General
Package/Case
VSSOP
Data Rate
50Mbps
Lead Free
Lead Free
Logic Function
Receiver
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Receiver Hysteresis
70mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD1476DGSR Datasheet
Download the complete datasheet for Texas Instruments SN65HVD1476DGSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

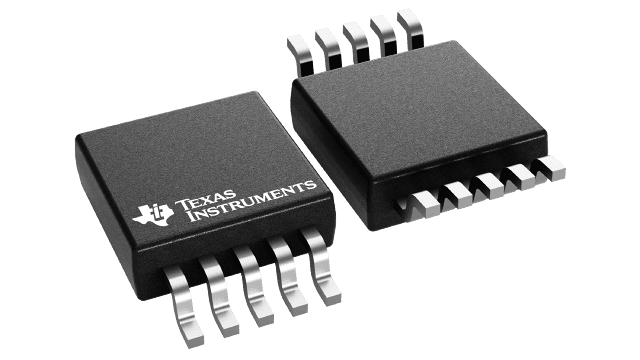

Product Images
