Texas Instruments
SN65HVD1786P
70-V Fault-Protected RS-485 with -20 to +25 common mode 8-PDIP -40 to 105
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD1786P technical specifications.
General
Package/Case
PDIP
Data Rate
1Mbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
976mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
6mA
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
200ns
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Weight
0.018455oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD1786P Datasheet
Download the complete datasheet for Texas Instruments SN65HVD1786P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

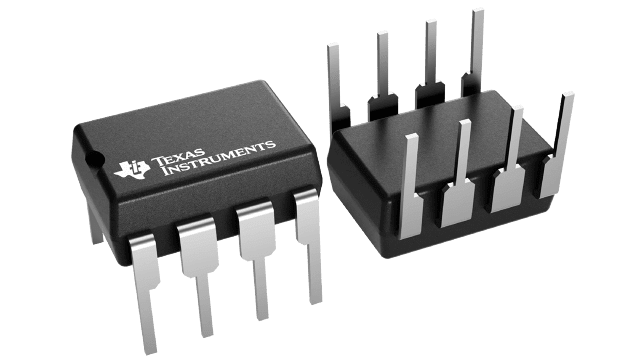

Product Images
