High-speed CAN transceiver supporting 1Mbps data rates. Features a single driver and receiver for half-duplex communication. Operates from a 3V to 3.6V supply with a typical 17mA supply current. Designed for industrial applications with a wide operating temperature range of -40°C to 85°C. Packaged in an 8-pin SOIC, supplied on tape and reel.
PackageD
Current17mA
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD232DR technical specifications.
General
Package/Case
D
Data Rate
1Mbps
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Drivers
1
Number of Receive Buffers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmit Buffers
1
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Receiver Hysteresis
100mV
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
17mA
Weight
0.002561oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD232DR Datasheet
Download the complete datasheet for Texas Instruments SN65HVD232DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

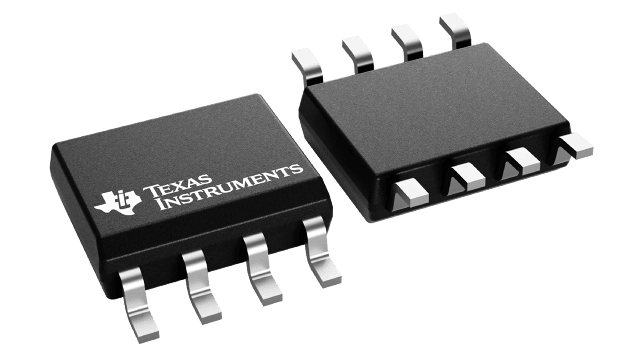

Product Images
