Full-duplex RS-485 transceiver with a 26Mbps data rate, operating from a 3V to 3.6V supply. Features one driver and one receiver, enabling robust serial communication. Packaged in a 20-VQFN, this lead-free, RoHS-compliant component offers a wide operating temperature range of -40°C to 85°C. Ideal for interface applications requiring reliable bus transceiving.
PackageVQFN
Current2mA
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD33RHLR technical specifications.
General
Package/Case
VQFN
Data Rate
26Mbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
2mA
Weight
0.001668oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD33RHLR Datasheet
Download the complete datasheet for Texas Instruments SN65HVD33RHLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

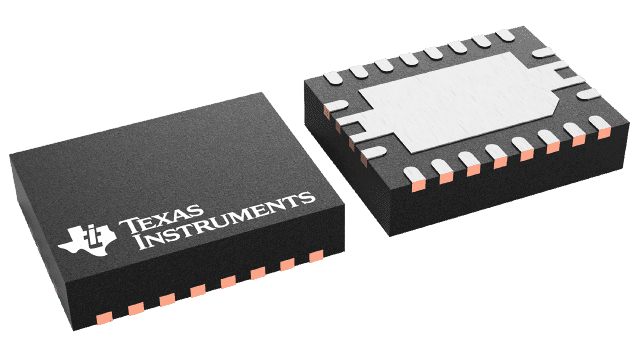

Product Images
