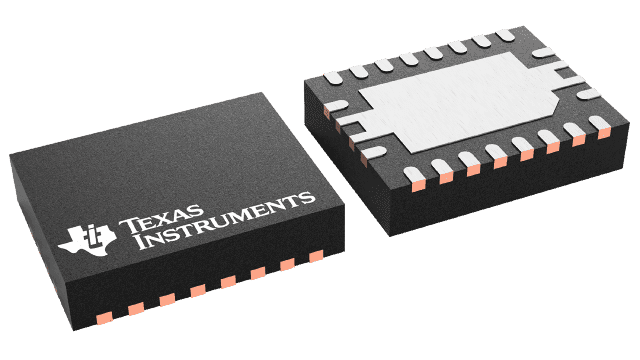

3.3V full-duplex RS-485 transceiver featuring a 26Mbps data rate. This integrated circuit offers one driver and one receiver, supporting full-duplex communication. Operates across a wide temperature range of -40°C to 85°C. Packaged in a 20-VQFN, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageVQFN
Current2mA
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD33RHLT technical specifications.
General
Package/Case
VQFN
Data Rate
26Mbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Drivers
1
Number of Receivers
1
Number of Transmitters
1
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tape and Reel
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
2mA
Weight
0.001668oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVD33RHLT Datasheet
Download the complete datasheet for Texas Instruments SN65HVD33RHLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
