Full-duplex RS-485 transceiver supporting 1Mbps data rates. Features a 3V to 3.6V operating supply voltage range with a typical 3.3V operation. Includes one driver and one receiver, packaged in a 14-SOIC (D) for tape and reel distribution. Operates across a wide temperature range from -40°C to 85°C. RoHS compliant and lead-free.
PackageD
Current6.5mA
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD35DR technical specifications.
General
| Package/Case | D |
| Data Rate | 1Mbps |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 6.5mA |
| Weight | 0.004706oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65HVD35DR Datasheet
Download the complete datasheet for Texas Instruments SN65HVD35DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

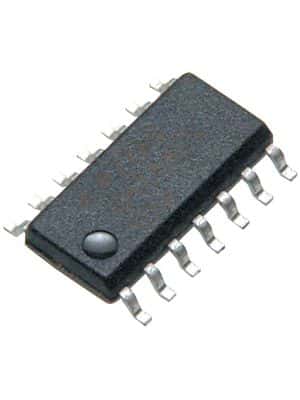

Product Images
