Half-duplex RS-485 transceiver with a 10Mbps data rate. Features a 5V operating supply voltage (4.5V to 5.5V range) and a low 2mA operating supply current. Designed for surface mount installation in an 8-SOIC package, operating across a temperature range of -40°C to 85°C. This RoHS compliant component offers one driver and one receiver for robust bus communication.
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD485ED technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 10Mbps |
| Interface | RS-485 |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 2mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 2mA |
| Weight | 0.002561oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65HVD485ED Datasheet
Download the complete datasheet for Texas Instruments SN65HVD485ED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

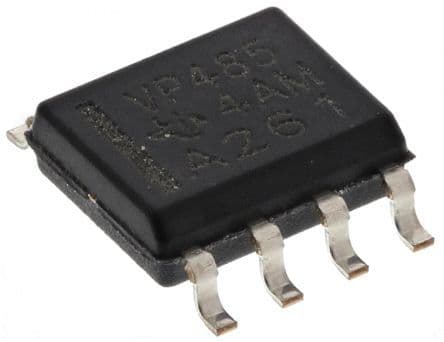

Product Images
