Single transmitter/receiver bus transceiver for RS-422/RS-485 interfaces. Features a 250Kbps data rate and operates from a 3V to 3.6V supply voltage, with a typical 3.3V operating voltage and 950uA supply current. This half-duplex transceiver supports one driver and one receiver, housed in a compact 8-pin SOIC package (5mm L x 4mm W x 1.5mm H). Operates across a wide temperature range from -40°C to 125°C and is RoHS compliant.
PackageD
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD72D technical specifications.
General
| Package/Case | D |
| Data Rate | 250Kbps |
| Height | 1.5mm |
| Interface | RS-485 |
| Lead Free | Lead Free |
| Length | 5mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 950uA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Weight | 0.004706oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65HVD72D Datasheet
Download the complete datasheet for Texas Instruments SN65HVD72D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

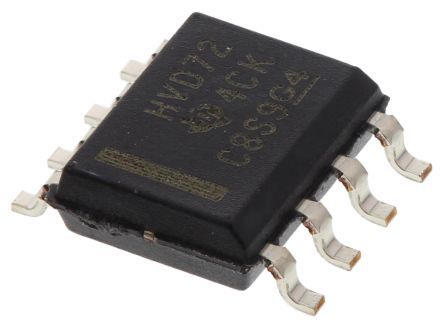

Product Images
