Half-duplex RS-485 bus transceiver, operating at 250 kbps, features a 3.3V supply voltage with a range of 3V to 3.6V. This integrated circuit offers one driver and one receiver, providing a single transceiver with two I/Os. Designed for robust performance, it operates across a temperature range of -40°C to 125°C and includes IEC ESD protection. Packaged in an 8-SON format, this lead-free and RoHS-compliant component is supplied on tape and reel.
PackageSON
Current950uA
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD72DRBT technical specifications.
General
| Package/Case | SON |
| Data Rate | 250Kbps |
| Interface | RS-485 |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 120mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of I/Os | 2 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 3.3V |
| Output Current | 60mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Propagation Delay | 1us |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 80mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 950uA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65HVD72DRBT Datasheet
Download the complete datasheet for Texas Instruments SN65HVD72DRBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

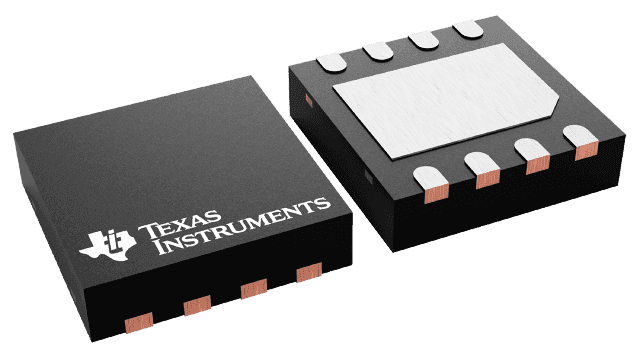

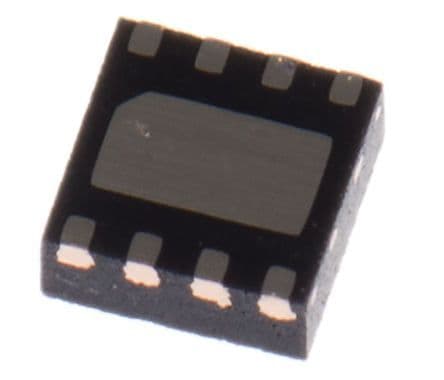

Product Images
