3.3V half-duplex RS-485 transceiver, 20Mbps data rate, 1 driver, 1 receiver. Features IEC ESD protection, 3V to 3.6V operating supply voltage, and 60mA output current. Operates from -40°C to 125°C with 17ns propagation delay. Packaged in 8-SON, tape and reel, lead-free, and RoHS compliant.
PackageSON
Current950uA
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD75DRBT technical specifications.
General
| Package/Case | SON |
| Data Rate | 20Mbps |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 160mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of I/Os | 2 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 3.3V |
| Output Current | 60mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Propagation Delay | 17ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 80mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 950uA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65HVD75DRBT Datasheet
Download the complete datasheet for Texas Instruments SN65HVD75DRBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

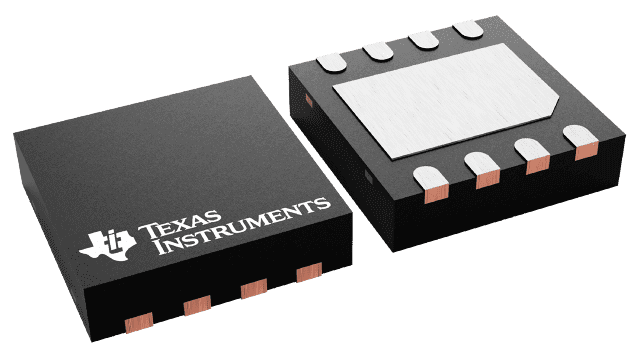

Product Images
