Texas Instruments

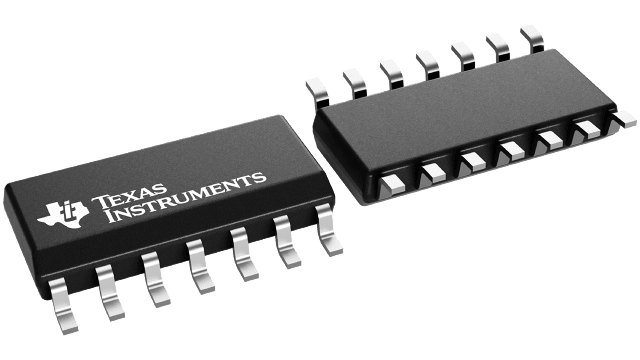

SN65HVD76DR
3.3V, Full-Duplex RS-485, 12kV IEC ESD, 50Mbps data rate, w/Enables 14-SOIC -40 to 125
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65HVD76DR technical specifications.
General
Package/Case
SOIC
Data Rate
50Mbps
Depth
4mm
Lead Free
Lead Free
Length
8.75mm
Logic Function
Receiver
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Transmitters
1
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Receiver Hysteresis
70mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Compliance
RoHS
Compliant
