LVDS Serializer, 1Mbps data rate, featuring an 8-bit parallel input and a single serial output. This interface IC operates with a supply voltage range of 4.5V to 5.5V, consuming a nominal current of 5.2mA. Designed for surface mounting, it is housed in a 28-pin HTSSOP package with dimensions of 9.8mm length, 4.5mm width, and 1.05mm height. Operating across a temperature range of -40°C to 125°C, this RoHS compliant component utilizes SPI interface.
PackageHTSSOP
MountingSurface Mount
Power1.1W
Quick Jump:
Technical Specifications
Texas Instruments SN65HVS885PWP technical specifications.
General
Package/Case
HTSSOP
Data Rate
1Mbps
Height
1.05mm
Input Type
PARALLEL
Interface
SPI
Lead Free
Lead Free
Length
9.8mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Supply Current
5.2mA
Number of Drivers
1
Number of Elements
1
Number of Inputs
8
Number of Outputs
1
Number of Receivers
1
Operating Supply Voltage
5.5V
Output Type
SERIAL
Packaging
Rail/Tube
Power Dissipation
1.1W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.00418oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65HVS885PWP Datasheet
Download the complete datasheet for Texas Instruments SN65HVS885PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

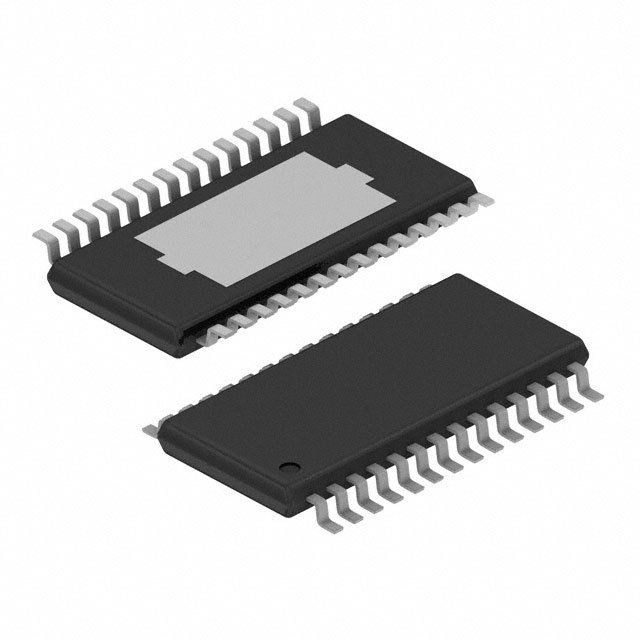

Product Images
