The SN65LBC174DWR is a 4-channel bus transceiver from Texas Instruments, packaged in a 20-pin SOIC. It operates within a temperature range of -40°C to 85°C and is powered by a 5V supply voltage. The device is RoHS compliant and lead free, with a maximum supply current of 7mA. It is available in tape and reel packaging with 2000 units per package.
PackageSOIC
Current7mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65LBC174DWR technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 10Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Transmitters | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 7mA |
| Weight | 0.018953oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65LBC174DWR Datasheet
Download the complete datasheet for Texas Instruments SN65LBC174DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

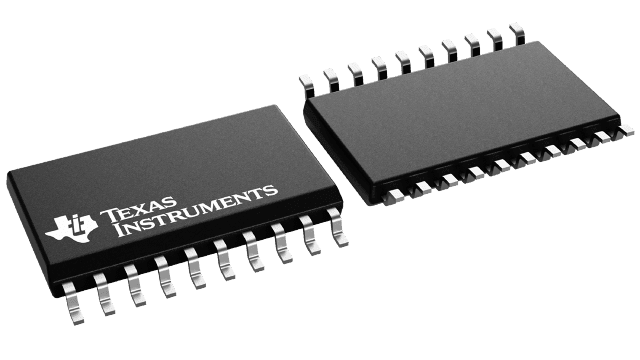

Product Images
