Half-duplex RS-485 bus transceiver, featuring a single transmitter and receiver. Operates at a 250Kbps data rate with a 5V supply voltage (4.75V to 5.25V range). Packaged in a lead-free, RoHS-compliant 8-pin SOIC surface-mount configuration. Designed for industrial applications with an operating temperature range of -40°C to 85°C.
PackageSOIC
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65LBC184D technical specifications.
General
Package/Case
SOIC
Data Rate
250Kbps
Height
1.58mm
Interface
RS-485
Lead Free
Lead Free
Length
4.9mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Circuits
1
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
25mA
Operating Supply Voltage
5V
Package Quantity
75
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
25mA
Weight
0.002561oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65LBC184D Datasheet
Download the complete datasheet for Texas Instruments SN65LBC184D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

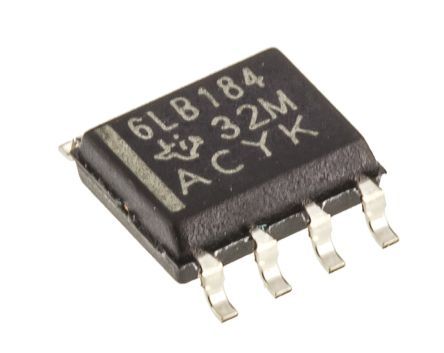

Product Images
