Technical Specifications
Texas Instruments SN65LVDS4RSER technical specifications.
General
| Data Rate | 500Mbps |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.5V |
| Min Supply Voltage | 1.8V |
| Number of Drivers | 1 |
| Number of Elements | 1 |
| Number of Receivers | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 3.3ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 65LVDS |
| Turn-On Delay Time | 3.3ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65LVDS4RSER Datasheet
Download the complete datasheet for Texas Instruments SN65LVDS4RSER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

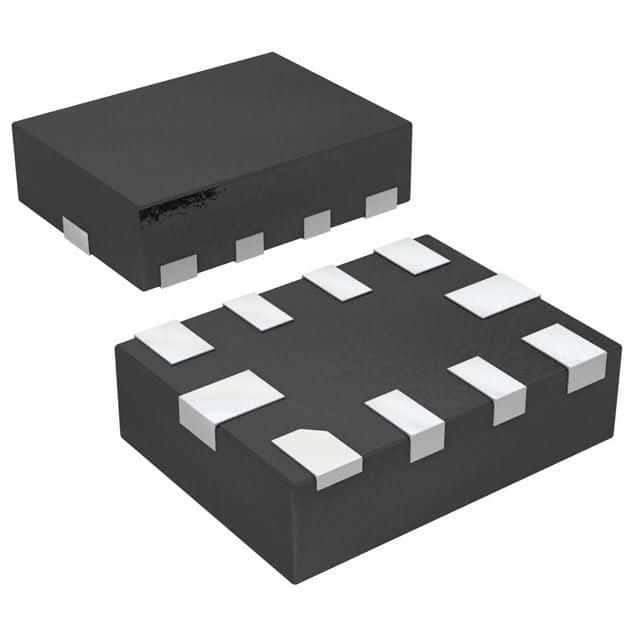

Product Images
