High-speed LVDS receiver operating up to 500Mbps, featuring a single channel with one driver and one receiver. This integrated circuit offers a wide operating voltage range from 1.62V to 2.75V and a maximum power dissipation of 40mW. With a compact 10-pin UQFN package measuring 2.05mm x 1.55mm x 0.55mm, it is suitable for space-constrained applications. The component boasts a propagation delay of 3.3ns and is RoHS compliant, designed for operation between -40°C and 85°C.
Quick Jump:
Technical Specifications
Texas Instruments SN65LVDS4RSET technical specifications.
General
Data Rate
500Mbps
Height
0.55mm
Lead Free
Lead Free
Length
2.05mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
40mW
Max Supply Voltage
2.75V
Min Supply Voltage
1.62V
Number of Channels
1
Number of Drivers
1
Number of Elements
1
Number of Receivers
1
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
3.3ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
65LVDS
Thickness
550um
Turn-On Delay Time
3.3ns
Weight
0.000353oz
Width
1.55mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65LVDS4RSET Datasheet
Download the complete datasheet for Texas Instruments SN65LVDS4RSET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

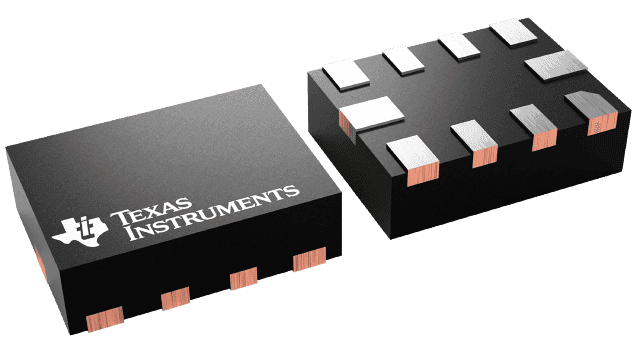

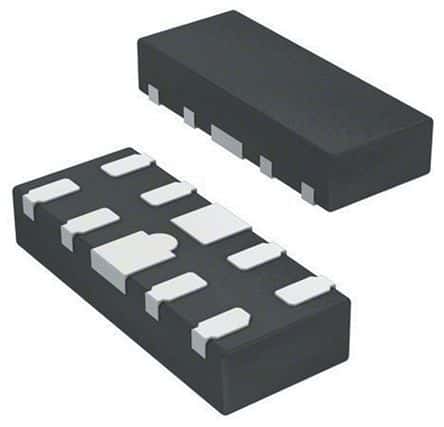

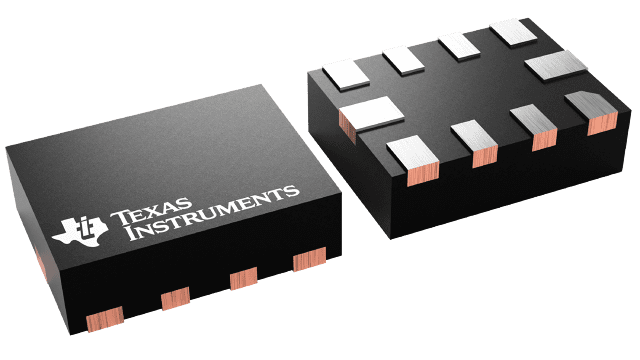

Product Images
