IC LVDS SERDES RECEIVER 56-TSSOP
PackageTSSOP
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments SN65LVDS94DGGG4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments SN65LVDS94DGGG4 technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 1904Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Drivers | 28 |
| Number of Elements | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 28 |
| Number of Receivers | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 65LVDS |
| Weight | 0.008229oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65LVDS94DGGG4 Datasheet
Download the complete datasheet for Texas Instruments SN65LVDS94DGGG4 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

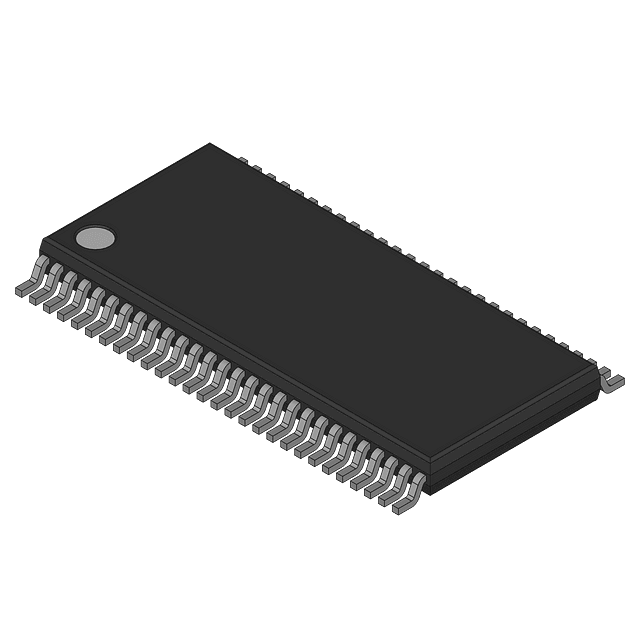

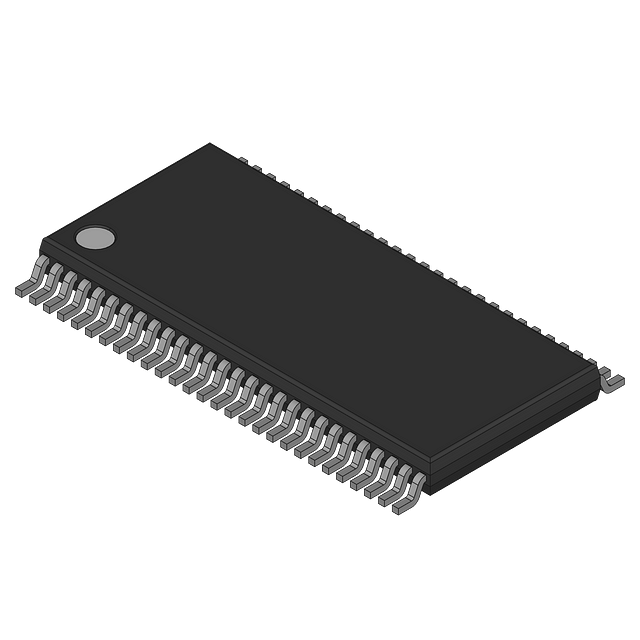

Product Images
