16-bit buffer/driver with 3-state outputs, featuring BICMOS technology. Offers 16 input and 16 output lines with inverting logic function. Operates from a 4.5V to 5.5V supply voltage, with a typical 5V operating voltage. Supports high level output current of -32mA and low level output current of 64mA. Packaged in a 48-TVSOP (TFSOP) for surface mounting, with a propagation delay of 4.3ns. Suitable for operation across a -40°C to 85°C temperature range and is lead-free and RoHS compliant.
PackageTFSOP
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT16240ADGVR technical specifications.
General
| Package/Case | TFSOP |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverter |
| Low Level Output Current | 64mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 16 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Input Lines | 16 |
| Number of Inputs | 4 |
| Number of Output Lines | 3 |
| Number of Outputs | 16 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Inverting |
| Propagation Delay | 4.3ns |
| Quiescent Current | 34mA |
| RoHS Compliant | Yes |
| Series | 74ABT |
| Technology | BICMOS |
| Turn-On Delay Time | 4.3ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ABT16240ADGVR Datasheet
Download the complete datasheet for Texas Instruments SN74ABT16240ADGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

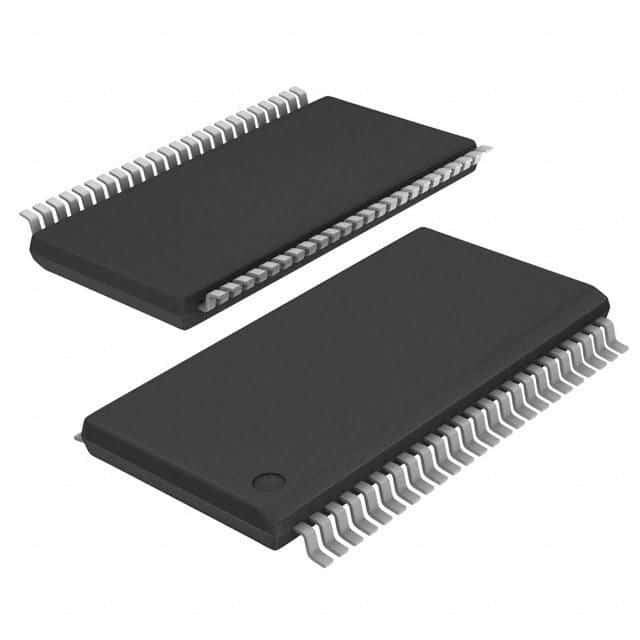

Product Images
