Octal transceiver and register with 3-state outputs, featuring bidirectional data flow and 8 bits per element. This BICMOS technology component offers a high level output current of 64mA and a low level output current of 32mA. Operating supply voltage is 5V, with a range of 4.5V to 5.5V. The device supports surface mount installation in a 24-SOIC package, with a propagation delay of 5.1ns and turn-on delay time of 9.5ns. It is RoHS compliant and operates across a temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT646ADW technical specifications.
General
Package/Case
SOIC
Direction
Bidirectional
High Level Output Current
64mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Outputs
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
5.1ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Termination
SMD/SMT
Turn-On Delay Time
9.5ns
Weight
0.022025oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT646ADW Datasheet
Download the complete datasheet for Texas Instruments SN74ABT646ADW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

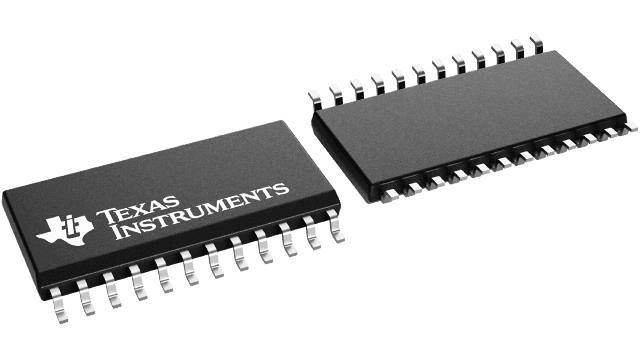

Product Images
