Bidirectional 8-bit to 9-bit parity bus transceiver, featuring 3-STATE outputs and inverting logic. Operates with a supply voltage of 4.5V to 5.5V, supporting a 5V nominal. Delivers 64mA high and low level output current. Packaged in a 24-SOIC surface mount configuration, this RoHS compliant component offers a propagation delay of 5.3ns and operates across a temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT853DWR technical specifications.
General
Package/Case
SOIC
Direction
Bidirectional
High Level Output Current
64mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
16
Number of Bits per Element
8
Number of Circuits
1
Number of Elements
1
Number of Outputs
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5.3ns
RoHS Compliant
Yes
Series
74ABT
Weight
0.022025oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT853DWR Datasheet
Download the complete datasheet for Texas Instruments SN74ABT853DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

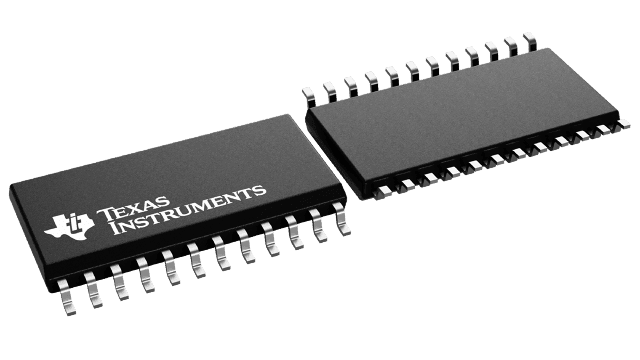

Product Images
