CMOS Hex Inverter IC, featuring six independent inverter gates with a 2V to 6V operating supply voltage range. This through-hole component offers a 24mA maximum output current and a propagation delay of 10ns. It operates across a temperature range of -40°C to 85°C and is packaged in a 14-pin PDIP. RoHS compliant and lead-free.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74AC04N technical specifications.
General
Package/Case
PDIP
Height
5.08mm
High Level Output Current
-24mA
Lead Free
Lead Free
Length
19.9mm
Logic Function
Buffer, Inverter
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
24mA
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
6
Number of Circuits
6
Number of Elements
6
Number of Gates
6
Number of Inputs
1
Operating Supply Voltage
5V
Output Current
24mA
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
10ns
Quiescent Current
2uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AC
Technology
CMOS
Termination
Through Hole
Turn-On Delay Time
7.5ns
Weight
0.032734oz
Width
7.62mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AC04N Datasheet
Download the complete datasheet for Texas Instruments SN74AC04N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

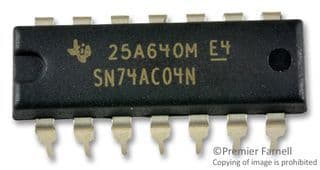

Product Images
