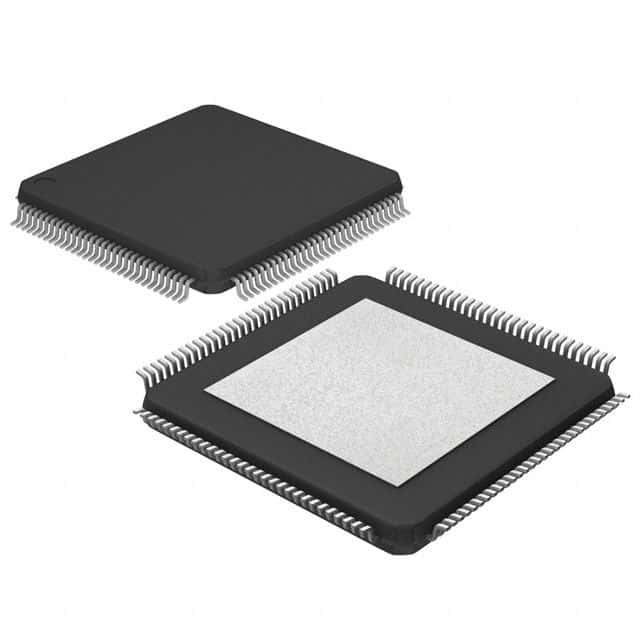

512 x 36 synchronous FIFO memory, 18Kb density, featuring a 36-bit bidirectional data bus. Offers 15ns access time and operates at a maximum frequency of 33.4MHz. Designed for surface mount with a HLQFP package, this component supports programmable flags and retransmit capability. Operates from a 4.5V to 5.5V supply voltage range, with a typical supply current of 400uA, and is RoHS compliant.
Frequency33.4MHz
PackageHLQFP
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT3631-30PCB technical specifications.
General
Access Time
15ns
Access Time-Max
15ns
Bus Directional
Bidirectional
Package/Case
HLQFP
Data Bus Width
36b
Density
18Kb
Direction
Bidirectional
Frequency
33.4MHz
FWFT Support
No
Lead Free
Lead Free
Max Frequency
33.4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
400uA
Max Supply Voltage
5.5V
Memory Size
18Kb
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
5V
Organization
512X36
Package Quantity
90
Packaging
Tray
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
Yes
RoHS Compliant
Yes
Series
74ACT
Supply Current
400uA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT3631-30PCB Datasheet
Download the complete datasheet for Texas Instruments SN74ACT3631-30PCB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
