1024 x 36 synchronous FIFO memory, featuring a 36-bit bidirectional data bus and 11ns access time. Operates at up to 66.7MHz with a 5V supply voltage, supporting programmable flags and retransmit capability. Packaged in a 120-pin HLQFP for surface mounting, this component offers 36Kb density and operates within a 0°C to 70°C temperature range.
Frequency66.7MHz
PackageHLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT3641-15PCB technical specifications.
General
Access Time
11ns
Bus Directional
Bidirectional
Package/Case
HLQFP
Data Bus Width
36b
Density
36Kb
Direction
Bidirectional
Frequency
66.7MHz
FWFT Support
No
Lead Free
Contains Lead
Max Frequency
66.7MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
400uA
Max Supply Voltage
5.5V
Memory Size
36Kb
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
5V
Organization
1KX36
Package Quantity
90
Packaging
Tray
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
Yes
RoHS Compliant
Yes
Series
74ACT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT3641-15PCB Datasheet
Download the complete datasheet for Texas Instruments SN74ACT3641-15PCB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

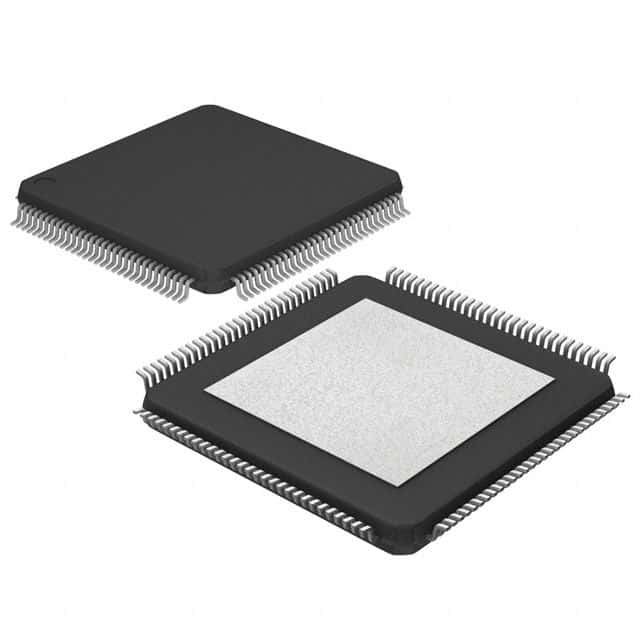

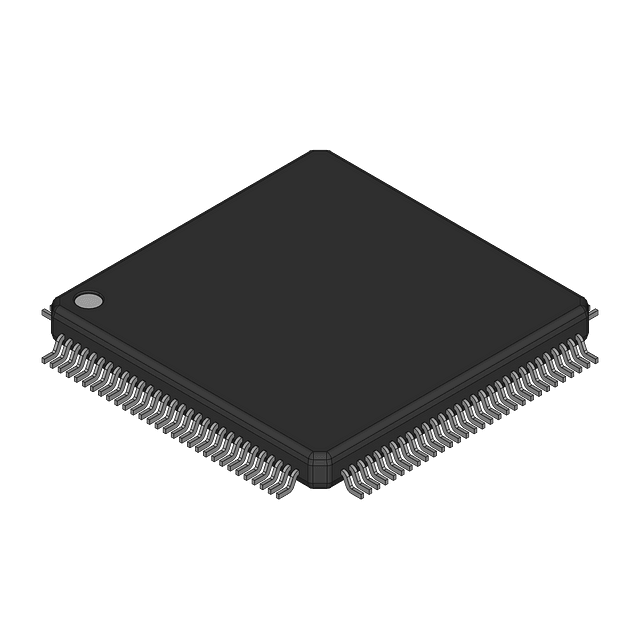

Product Images
