Synchronous FIFO memory with 72Kb density, organized as 2048 x 36 bits. Features a 36-bit bidirectional data bus and 11ns access time, supporting a maximum frequency of 66.7MHz. Operates from a 4.5V to 5.5V supply voltage, with a typical supply current of 400uA. This surface mount component is housed in a HLQFP package, offering programmable flags and retransmit capability.
Frequency66.7MHz
PackageHLQFP
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT3651-15PCB technical specifications.
General
Access Time
11ns
Access Time-Max
11ns
Bus Directional
Bidirectional
Package/Case
HLQFP
Data Bus Width
36b
Density
72Kb
Direction
Bidirectional
Frequency
66.7MHz
FWFT Support
No
Lead Free
Lead Free
Max Frequency
66.7MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
400uA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
2KX36
Package Quantity
90
Packaging
Tray
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
Yes
RoHS Compliant
Yes
Series
74ACT
Supply Current
400uA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT3651-15PCB Datasheet
Download the complete datasheet for Texas Instruments SN74ACT3651-15PCB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

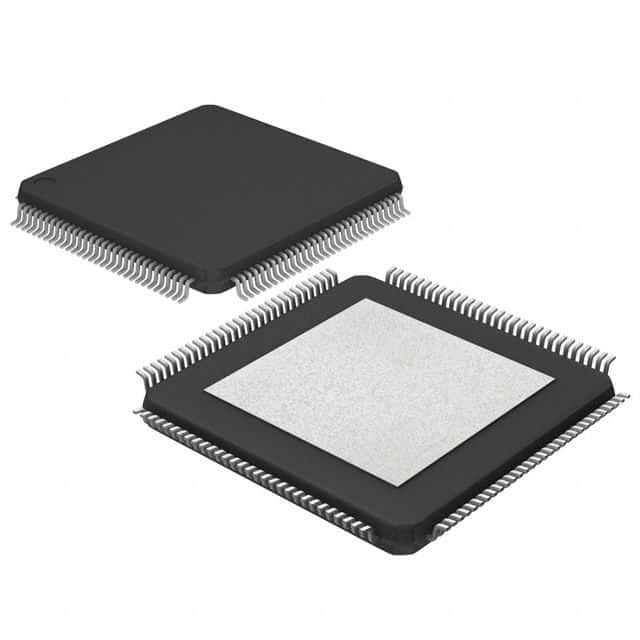

Product Images
