Synchronous FIFO memory with 18Kb density and 9-bit data bus width. Features 2048 word organization, 13ns access time, and a maximum operating frequency of 50MHz. Operates from a 4.5V to 5.5V supply voltage, with a typical supply current of 400uA. This surface mount component supports programmable flags and is RoHS compliant, packaged in a 44-PLCC.
Frequency50MHz
PackagePLCC
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ACT7807-20FN technical specifications.
General
Access Time
13ns
Access Time-Max
25ns
Bus Directional
Unidirectional
Package/Case
PLCC
Data Bus Width
9b
Density
18Kb
Direction
Unidirectional
Frequency
50MHz
FWFT Support
No
Lead Free
Lead Free
Max Frequency
50MHz
Max Operating Temperature
70°C
Memory Size
18Kb
Min Operating Temperature
0°C
Max Supply Current
400uA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
5V
Organization
2KX9
Package Quantity
26
Packaging
Rail/Tube
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
No
RoHS Compliant
Yes
Series
74ACT
Supply Current
400uA
Sync/Async
Synchronous
Weight
0.07992oz
Word Size
9b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ACT7807-20FN Datasheet
Download the complete datasheet for Texas Instruments SN74ACT7807-20FN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

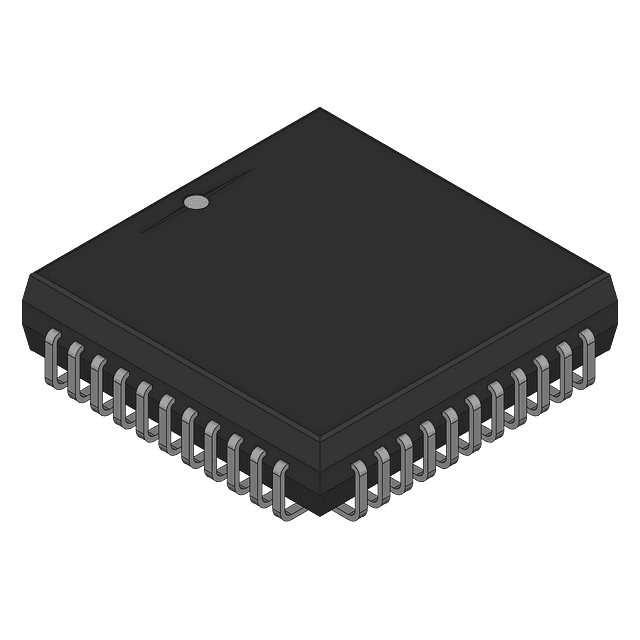

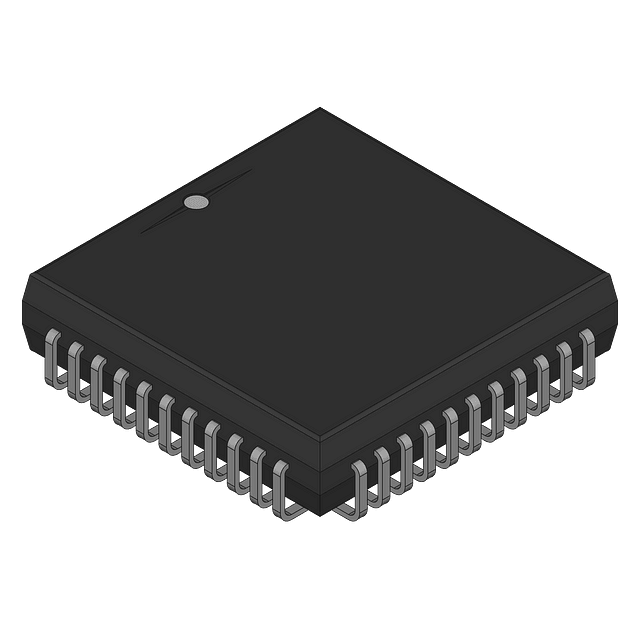

Product Images
