CMOS Hex Inverter IC, featuring 6 independent inverter circuits. Operates with a supply voltage range of 2V to 5.5V, with a typical operating voltage of 5V. Offers a high level output current of -8mA and a low level output current of 8mA. Packaged in a 14-TVSOP (Thin Shrink Small Outline Package) for surface mounting. This RoHS compliant component has a propagation delay of 7.5ns and a wide operating temperature range from -40°C to 125°C.
PackageTFSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC04DGVR technical specifications.
General
Package/Case
TFSOP
High Level Output Current
-8mA
Lead Free
Lead Free
Logic Function
Buffer, Inverter
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
6
Number of Circuits
6
Number of Elements
6
Number of Gates
6
Number of Inputs
1
Operating Supply Voltage
5V
Output Current
8mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
7.5ns
Quiescent Current
2uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AHC
Technology
CMOS
Turn-On Delay Time
8.5ns
Weight
0.001474oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC04DGVR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC04DGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

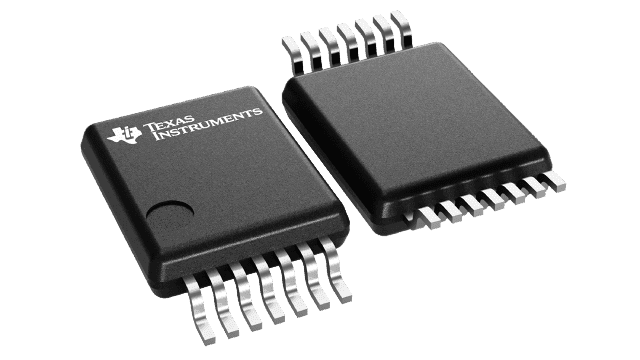

Product Images
