CMOS logic gate IC featuring four independent 2-input AND gates. Operates with a supply voltage range of 2V to 5.5V, offering a propagation delay of 9ns. Supports surface mount installation in a 14-pin TSSOP package. Provides 8mA output current at low and high levels, with a maximum output current of 25mA. Designed for operation across a wide temperature range from -40°C to 125°C.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC08PWR technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-8mA
Lead Free
Lead Free
Logic Function
AND GATE
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
25mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
9ns
Quiescent Current
2uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AHC
Technology
CMOS
Turn-On Delay Time
9ns
Weight
0.002018oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC08PWR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC08PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

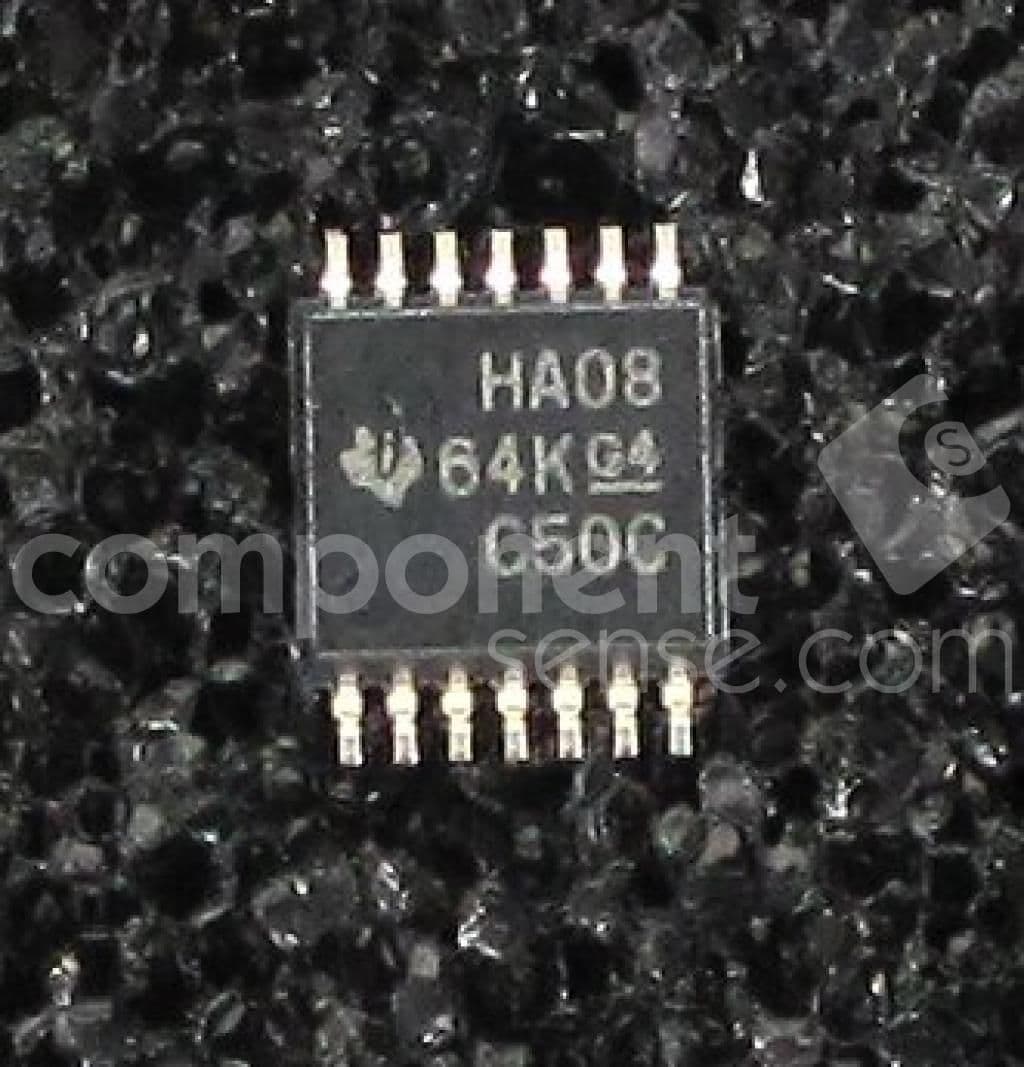

Product Images
