Quadruple 2-input positive-AND gates, CMOS technology, operating from 2V to 5.5V. Features a 7.9ns propagation delay and 9ns turn-on delay. Rated for -40°C to 125°C, with 8mA output current. Packaged in a 14-TSSOP, surface mount configuration, supplied on tape and reel. RoHS compliant and lead-free.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC08PWRG4 technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-8mA
Lead Free
Lead Free
Logic Function
AND GATE
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
8mA
Package Quantity
2000
Packaging
Tape and Reel
Propagation Delay
7.9ns
Quiescent Current
2uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74AHC
Technology
CMOS
Turn-On Delay Time
9ns
Weight
0.002018oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC08PWRG4 Datasheet
Download the complete datasheet for Texas Instruments SN74AHC08PWRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

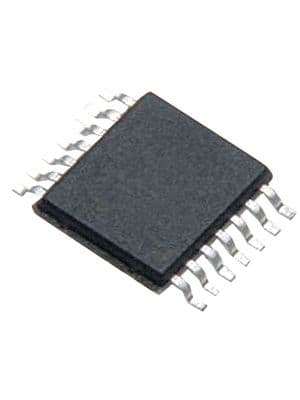

Product Images
