Dual-element monostable multivibrator, featuring two independent circuits with Schmitt trigger inputs. Operates from a 2V to 5.5V supply voltage, with a typical 5V operating voltage. Offers a 7.3ns propagation delay and 14ns turn-on delay time. Designed for surface mounting in a 16-pin TSSOP package, this CMOS logic IC supports an output current of 8mA and operates within a temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC123APWR technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-8mA
Independent Circuits
2
Lead Free
Lead Free
Logic Function
Multivibrator
Low Level Output Current
8mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
2
Number of Circuits
2
Number of Elements
2
Operating Supply Voltage
5V
Output Current
8mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
7.3ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
Yes
Series
74AHC
Technology
CMOS
Turn-On Delay Time
14ns
Weight
0.002183oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC123APWR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC123APWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

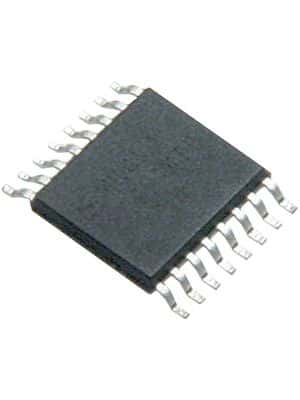

Product Images
