Single 2-input positive NOR gate, CMOS technology, operating from 2V to 5.5V supply. Features a maximum output current of 8mA and a propagation delay of 7.5ns. Housed in a compact 0.9mm height, 2mm length, 1.25mm width SC package for surface mounting. Suitable for operation across a wide temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC1G02DCKR technical specifications.
General
| Package/Case | SC |
| Height | 0.9mm |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Length | 2mm |
| Logic Function | NOR GATE |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 8mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 7.5ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 74AHC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 11.4ns |
| Weight | 8.8E-05oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AHC1G02DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC1G02DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

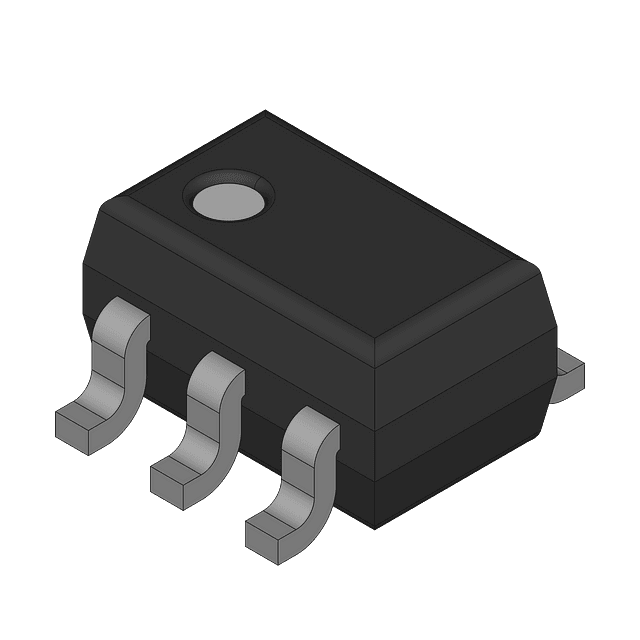

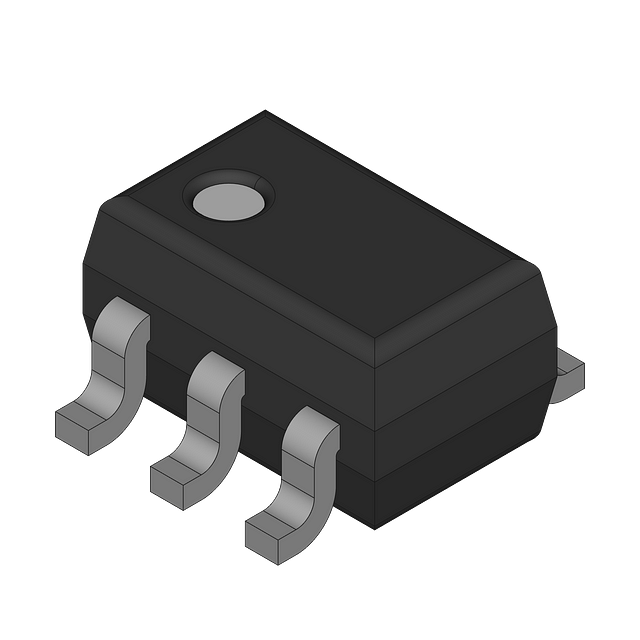

Product Images
