SN74AHC245DGVR
Octal 3-State Bus Transceiver, Bidirectional, 8-Bit, CMOS, 5.5V, 125°C
Octal bus transceiver featuring 3-state outputs, designed for bidirectional data flow across 8 bits. This CMOS logic IC operates with a supply voltage range of 2V to 5.5V and offers a high level output current of 8mA and a low level output current of 8mA. With a propagation delay of 8.5ns, it is suitable for surface mounting in a 20-TVSOP package. Operating across a temperature range of -40°C to 125°C, this lead-free and RoHS compliant component ensures reliable performance in demanding applications.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC245DGVR technical specifications.
General
| Package/Case | TFSOP |
| Direction | Bidirectional |
| High Level Output Current | 8mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 8.5ns |
| RoHS Compliant | Yes |
| Series | 74AHC |
| Technology | CMOS |
| Turn-On Delay Time | 19ns |
| Weight | 0.002123oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AHC245DGVR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC245DGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

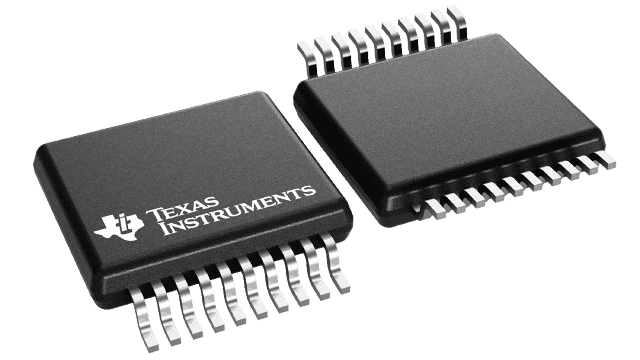

Product Images
