CMOS OR Gate IC featuring 4 independent 2-input gates. Operates from a 2-V to 5.5-V supply voltage with a maximum operating temperature of 125°C. Offers a typical propagation delay of 8.5 ns and output current capability of 25 mA. Packaged in a 14-pin TSSOP for surface mounting, this RoHS compliant component is ideal for digital logic applications.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AHC32PWR technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-8mA
Lead Free
Lead Free
Logic Function
OR GATE
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
25mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
8.5ns
Quiescent Current
2uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AHC
Technology
CMOS
Turn-On Delay Time
13ns
Weight
0.002018oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AHC32PWR Datasheet
Download the complete datasheet for Texas Instruments SN74AHC32PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

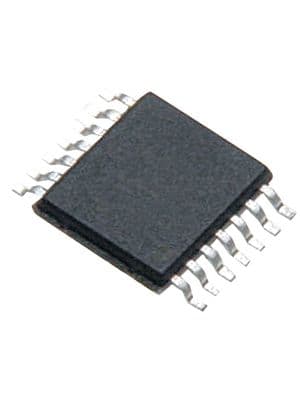

Product Images
