CMOS logic inverter IC featuring six independent Schmitt-trigger input inverting gates. Operates with a supply voltage range of 4.5V to 5.5V, supporting a typical 5V operation. Offers a high-level output current of -8mA and a low-level output current of 8mA. Designed for through-hole mounting in a 14-pin PDIP package, with a propagation delay of 9ns. Suitable for operation across a temperature range of -40°C to 85°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74AHCT14N technical specifications.
General
| Package/Case | PDIP |
| Height | 4.57mm |
| High Level Output Current | -8mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Length | 19.69mm |
| Logic Function | Buffer, Inverter, Schmitt Trigger |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 6 |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 8mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 9ns |
| Quiescent Current | 2uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | Yes |
| Series | 74AHCT |
| Technology | CMOS |
| Termination | Through Hole |
| Turn-On Delay Time | 12ns |
| Weight | 0.032734oz |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AHCT14N Datasheet
Download the complete datasheet for Texas Instruments SN74AHCT14N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

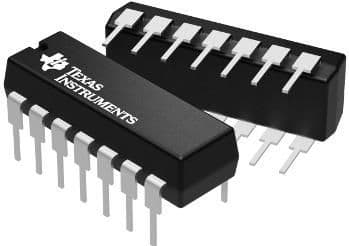

Product Images
