8-bit bidirectional bus transceiver, featuring 3-state outputs and CMOS technology. Operates with a supply voltage range of 4.5V to 5.5V, with a nominal 5V. Offers 8mA high and low level output current, with a propagation delay of 9.5ns. Packaged in a 20-pin TSSOP for surface mounting, this RoHS compliant component operates from -40°C to 125°C.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments SN74AHCT245PWR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments SN74AHCT245PWR technical specifications.
General
| Package/Case | TSSOP |
| Direction | Bidirectional |
| High Level Output Current | 8mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 4uA |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 9.5ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74AHCT |
| Technology | CMOS |
| Thickness | 1mm |
| Turn-On Delay Time | 16.5ns |
| Weight | 0.002716oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AHCT245PWR Datasheet
Download the complete datasheet for Texas Instruments SN74AHCT245PWR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

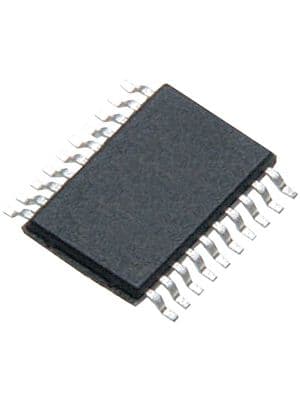

Product Images
