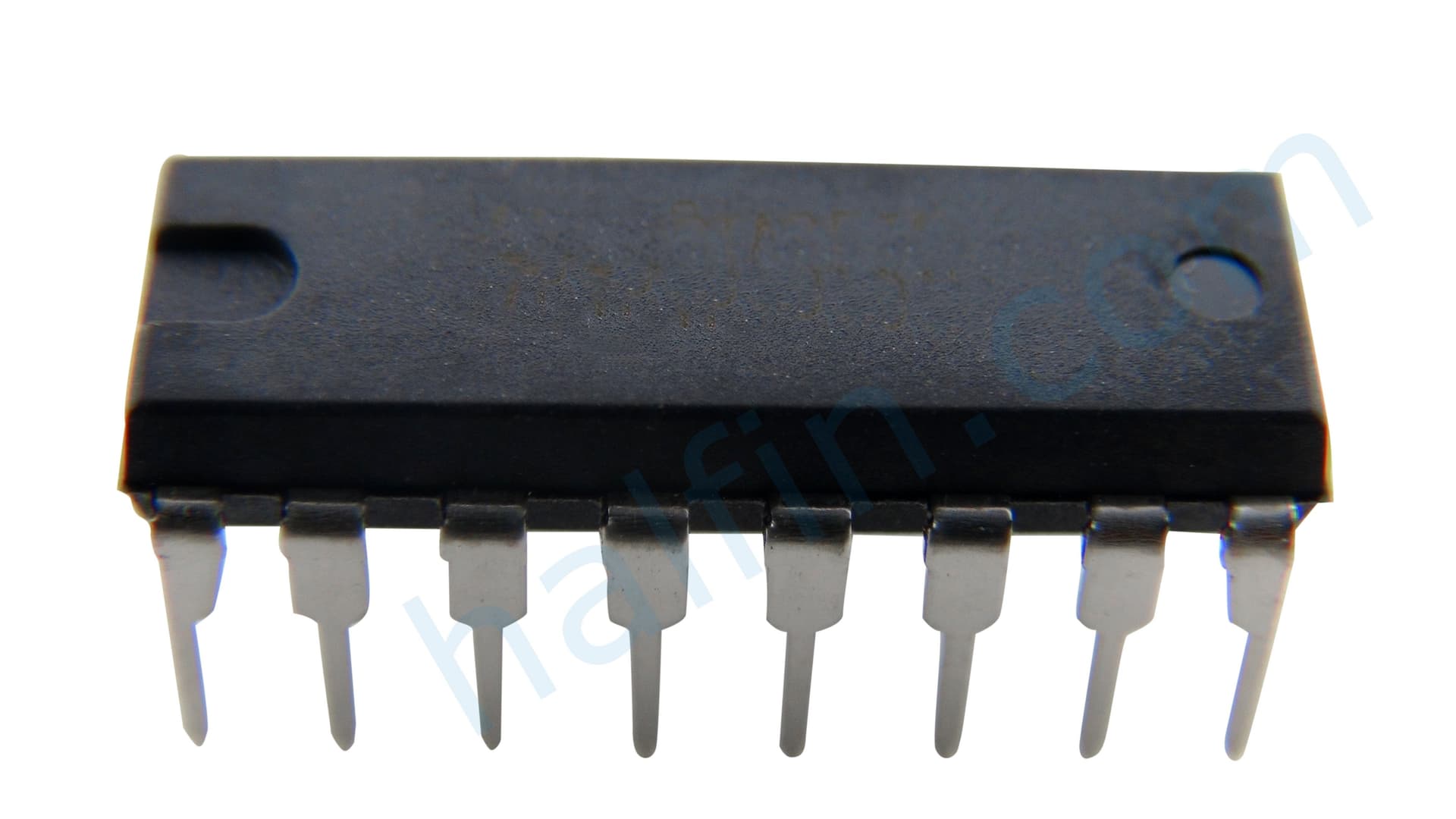

4-Bit Synchronous Up/Down Binary Counter, featuring positive edge clock triggering and bidirectional counting capability. This logic IC operates with a 5V supply voltage, a frequency of 30MHz, and a propagation delay of 37ns. Packaged in a 16-PDIP through-hole mount, it is RoHS compliant and operates within a temperature range of 0°C to 70°C.
Frequency30MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74ALS191AN technical specifications.
General
Package/Case
PDIP
Clock Edge Trigger Type
Positive Edge
Direction
Bidirectional
Frequency
30MHz
Height
4.57mm
Lead Free
Lead Free
Length
19.3mm
Logic Function
Counter
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Bits
4
Number of Bits per Element
4
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
37ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ALS
Sync/Async
Synchronous
Technology
BIPOLAR
Turn-On Delay Time
37ns
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ALS191AN Datasheet
Download the complete datasheet for Texas Instruments SN74ALS191AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
