8-bit bidirectional bus transceiver with 3-state outputs, featuring 8 channels and 8 gates. This through-hole mounted integrated circuit operates from a 4.5V to 5.5V supply voltage, with a typical operating voltage of 5V. It offers a low-level output current of 24mA and a high-level output current of -15mA, with a propagation delay of 10ns. The component is RoHS compliant and packaged in a 20-pin PDIP.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ALS245AN technical specifications.
General
Package/Case
PDIP
Direction
Bidirectional
Height
4.57mm
High Level Output Current
-15mA
Lead Free
Lead Free
Length
24.33mm
Logic Function
Transceiver, Inverting
Low Level Output Current
24mA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Gates
8
Number of Inputs
1
Number of Outputs
8
Number of Transceivers
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
20
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
10ns
Quiescent Current
36mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ALS
Technology
BIPOLAR
Termination
Through Hole
Turn-On Delay Time
10ns
Weight
0.042297oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ALS245AN Datasheet
Download the complete datasheet for Texas Instruments SN74ALS245AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

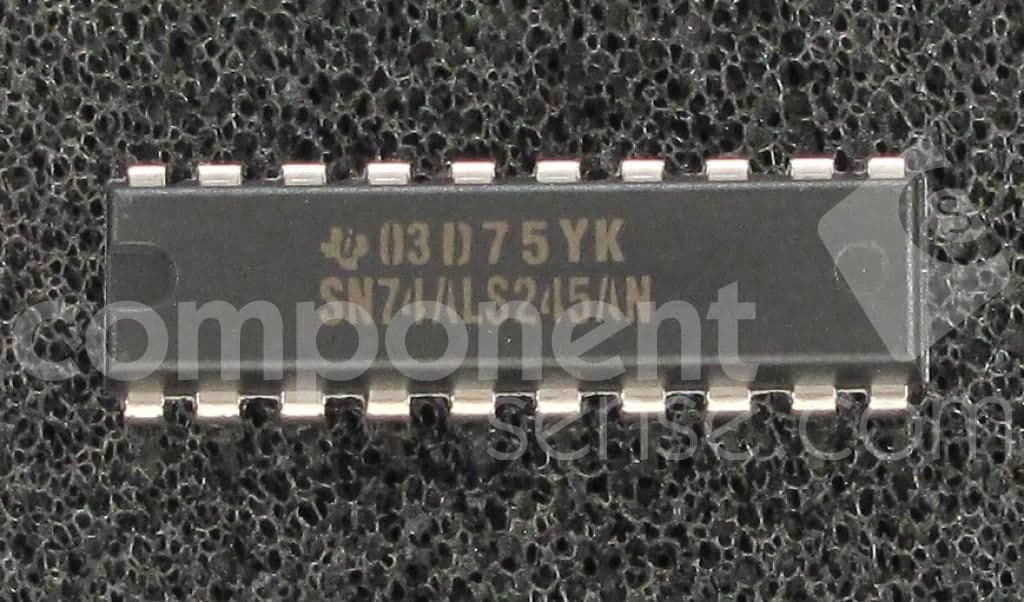

Product Images
