Octal Bus Transceiver, featuring 8 bidirectional channels and an inverting logic function. This through-hole component operates with a 5V supply voltage (4.5V to 5.5V range) and offers a high level output current of 24mA and a low level output current of 24mA. With a propagation delay of 39ns and a turn-on delay time of 33ns, it is suitable for operation between 0°C and 70°C. Packaged in a 20-pin PDIP, this RoHS compliant, lead-free component utilizes BIPOLAR technology.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ALS621AN technical specifications.
General
| Package/Case | PDIP |
| Direction | Bidirectional |
| Height | 4.57mm |
| High Level Output Current | 24mA |
| Lead Free | Lead Free |
| Length | 24.33mm |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 39ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74ALS |
| Technology | BIPOLAR |
| Termination | Through Hole |
| Turn-On Delay Time | 33ns |
| Weight | 0.042297oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ALS621AN Datasheet
Download the complete datasheet for Texas Instruments SN74ALS621AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

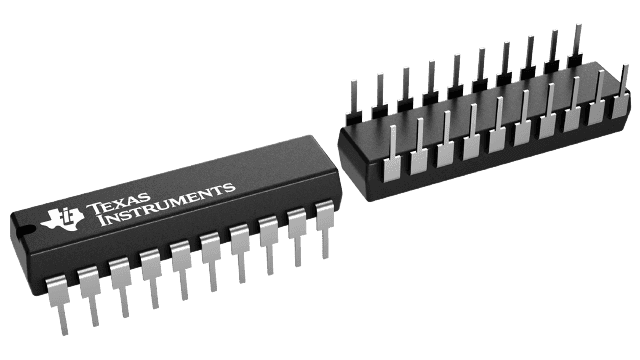

Product Images
