Texas Instruments
SN74ALVC164245DGGR
16-Bit Bidirectional Transceiver, 3-State, 300Mbps, 2.5-5.5V, TSSOP
16-bit bidirectional level-shifting transceiver with 3-state outputs, operating from 2.3V to 5.5V supply. Features 300Mbps data rate and 2.4ns propagation delay. This CMOS technology device offers 16 channels, supporting bidirectional data flow with non-inverting logic. Packaged in a 48-TSSOP for surface mounting, it operates across a -40°C to 85°C temperature range.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ALVC164245DGGR technical specifications.
General
| Package/Case | TSSOP |
| Channel Type | Bidirectional |
| Data Rate | 300Mbps |
| Direction | Bidirectional |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Translator |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 16 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Outputs | 16 |
| Number of Transceivers | 16 |
| Output Type | 3-STATE |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 2.4ns |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74ALVC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 12.3ns |
| Weight | 0.007873oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ALVC164245DGGR Datasheet
Download the complete datasheet for Texas Instruments SN74ALVC164245DGGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

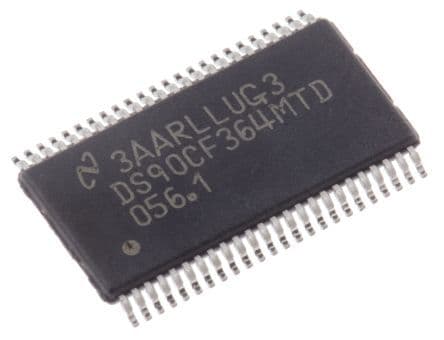

Product Images
