CMOS OR Gate IC, featuring 4 independent 2-input OR gates. Operates with a supply voltage range of 1.65V to 3.6V. Offers a typical propagation delay of 2.8ns and an output current of 24mA. Packaged in a 14-pin SOIC for surface mounting, with an operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74ALVC32D technical specifications.
General
Package/Case
SOIC
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
OR GATE
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
24mA
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
2.8ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ALVC
Technology
CMOS
Turn-On Delay Time
2.8ns
Weight
0.004564oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ALVC32D Datasheet
Download the complete datasheet for Texas Instruments SN74ALVC32D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

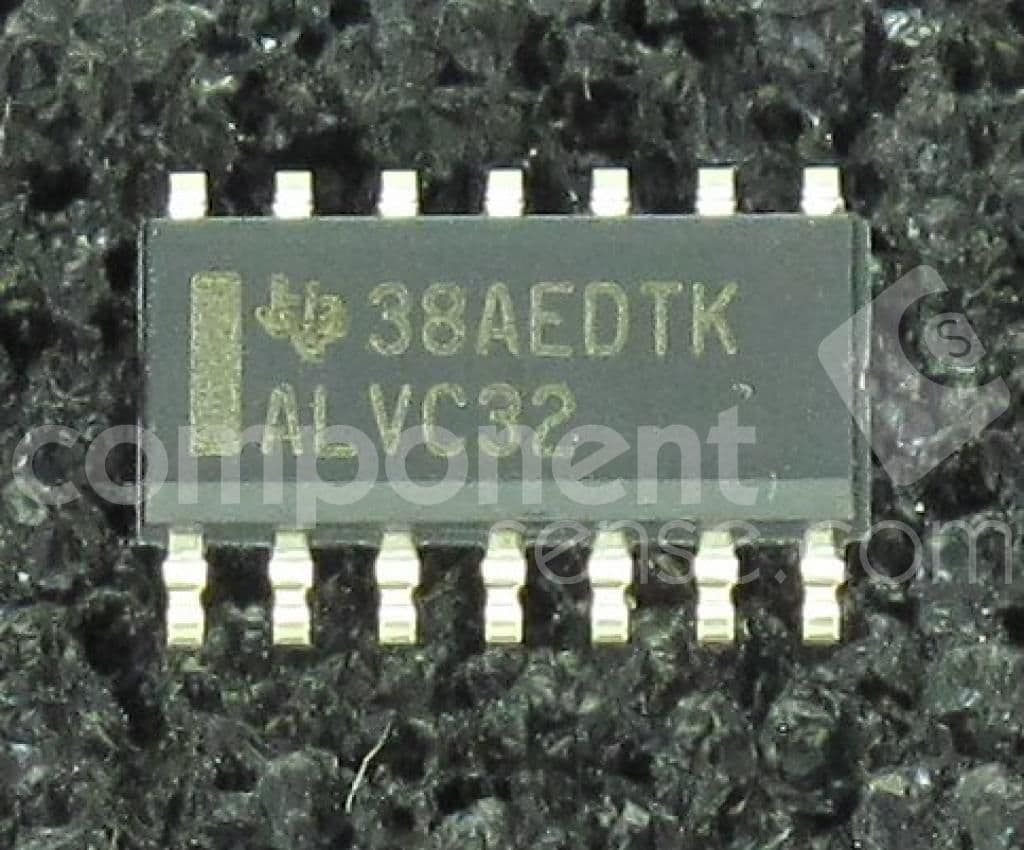

Product Images
