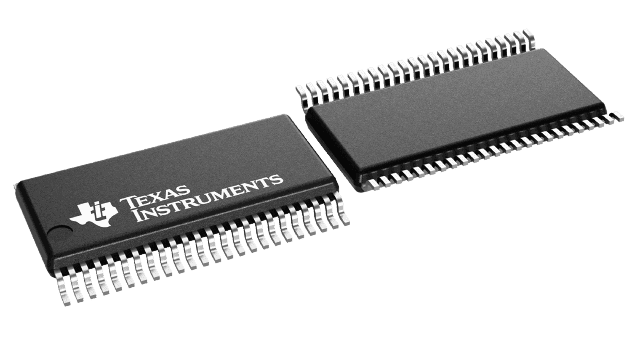

16-bit bidirectional bus transceiver featuring 3-state outputs. This logic IC offers 8 bits per element across two circuits, with a maximum operating temperature of 85°C and a minimum of -40°C. It operates with a supply voltage range from 800mV to 2.7V and provides 9mA of high and low level output current. Surface mountable in a TFSOP package, this RoHS compliant component boasts a propagation delay of 1.9ns.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AUC16245DGVR technical specifications.
General
| Package/Case | TFSOP |
| Direction | Bidirectional |
| High Level Output Current | 9mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 9mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.7V |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 8 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Outputs | 16 |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 1.9ns |
| RoHS Compliant | Yes |
| Series | 74AUC |
| Weight | 0.004356oz |
Compliance
| RoHS | Compliant |
