Dual buffer gate IC featuring 2 non-inverting buffer elements. Operates with a supply voltage range of 0.8V to 2.7V and supports a wide temperature range from -40°C to 85°C. Delivers 9mA high-level and low-level output current with a typical propagation delay of 1.8ns. Surface mountable in a SOP package, this lead-free and RoHS compliant component utilizes CMOS technology.
PackageSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AUC2G34DRLR technical specifications.
General
| Package/Case | SOP |
| High Level Output Current | -9mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 9mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.7V |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 2 |
| Number of Outputs | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 1.8ns |
| Quiescent Current | 10uA |
| RoHS Compliant | Yes |
| Series | 74AUC |
| Technology | CMOS |
| Turn-On Delay Time | 3.4ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AUC2G34DRLR Datasheet
Download the complete datasheet for Texas Instruments SN74AUC2G34DRLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

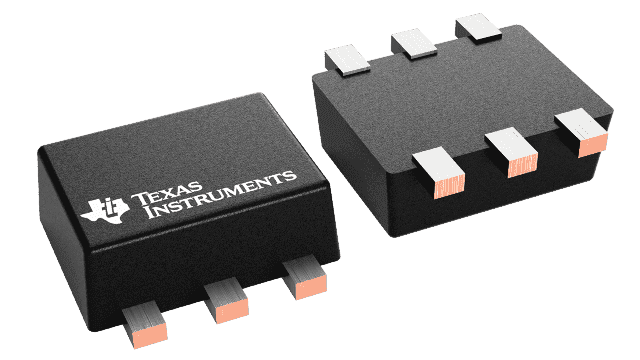

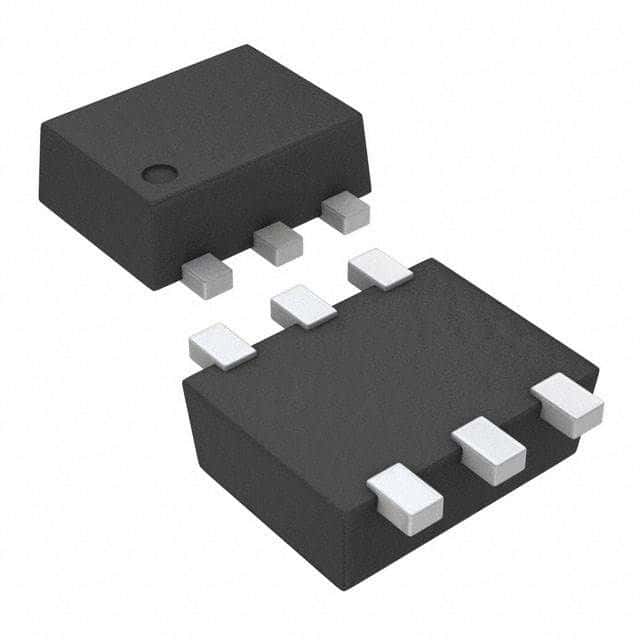

Product Images
